Product details

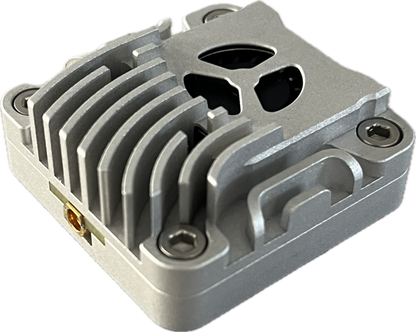

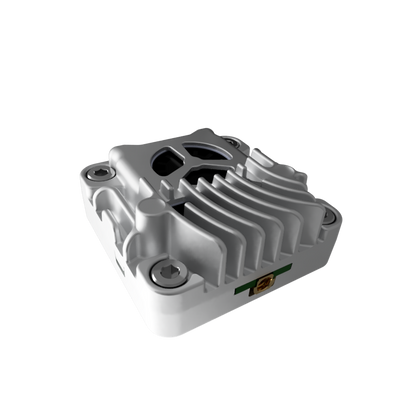

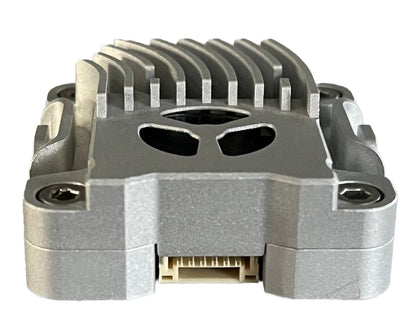

A compact, actively cooled 5.8GHz video transmitter built for long-range FPV. Output scales from 25mW pit mode up to 2.5W, with Tramp protocol support for in-air power and channel switching from the flight controller.
Features
- Active cooling for sustained high-power operation
- Tramp protocol support (in-flight power/channel control from FC)
- Output up to 2.5W (34dBm)
- Pit Mode support
- Band A and Band B frequency support
- CVBS PAL/NTSC video format
- CE certified
Specifications
| Maximum power | 2.5 W (34 dBm) |
| Power levels | 25 mW · 0.5 W · 1 W · 2.5 W · OFF (Pit Mode) |
| Frequency bands | Band A, Band B |
| Input voltage | 9–26 V |
| Power consumption | Up to 10 W |
| Video format | CVBS PAL/NTSC |
| Control protocol | Tramp |
| Connector | MMCX, 50 Ω |
| Dimensions | 39 × 39 × 16 mm |
| Weight | 32 g |
What's in the box
1× VTX D1 (5.8G) 2.5W · 1× MMCX-SMA pigtail · 1× cable to flight controller · 1× mounting kit
