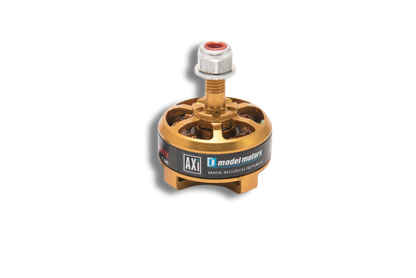

Motor 2204
Product details
⚡ Compact Power for Professional Multirotors
The AXI 2204 motor delivers up to 300 W of peak power in a lightweight and precisely engineered design. It provides strong and stable thrust for small multirotor platforms, ensuring smooth performance and excellent control even under demanding conditions.
🛠️ European Quality and Precision Engineering
Developed and manufactured in Europe, the AXI 2204 uses high-grade materials and undergoes careful balancing for vibration-free operation. Its durable construction guarantees consistent performance and long service life in professional applications.
🔄 Efficient and Reliable Integration
Optimized for 3S–4S Li-Po systems, the motor combines responsive power delivery with excellent energy efficiency. It can handle short-term current peaks of around 20 A, making it ideal for precision-focused FPV and compact UAV projects requiring reliable propulsion.
Basic parameters
Max. voltage (V)
Max. Power (W)

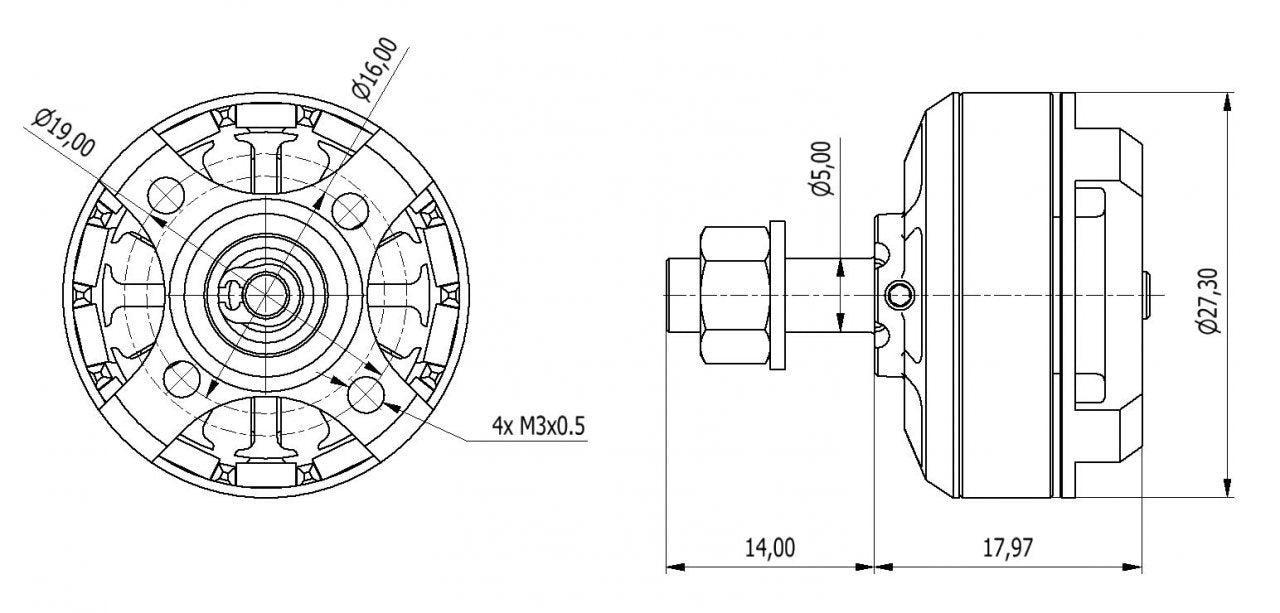

Mechanical parameters
Motor length mm
Motor diameter mm
Documents
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Please read our FAQs page to find out more.
What is the difference between continuous and peak power?
Continuous power is the level the motor can safely handle over long periods. Peak power is the short-term maximum during acceleration or climb. Exceeding continuous ratings can cause overheating.
What happens if the motor exceeds its maximum temperature?
The motor temperature should normally be monitored by the ESC through the built-in motor temperature sensor. If thermal protection is disabled or not supported, excessive heat can cause partial demagnetization of the magnets, leading to permanent loss of performance or complete motor failure.
How to prevent overheating?
Ensure proper cooling by maintaining sufficient airflow or liquid circulation around the motor. Overheating often indicates that the motor is overloaded or operating outside its efficiency range. Always match the motor with a suitable propeller, gearbox, or load to keep current within the rated limits. Monitor temperature through telemetry and avoid running at peak power for extended periods
What does KV mean?
KV indicates how many revolutions per minute (RPM) the motor produces per volt.
What maintenance does a BLDC motor require?
Brushless motors are mostly maintenance-free. Periodically clean the motor using dry compressed air to remove dust and debris. Avoid using liquids or solvents, and make sure no moisture enters the housing. Check bearings occasionally for smooth rotation.
