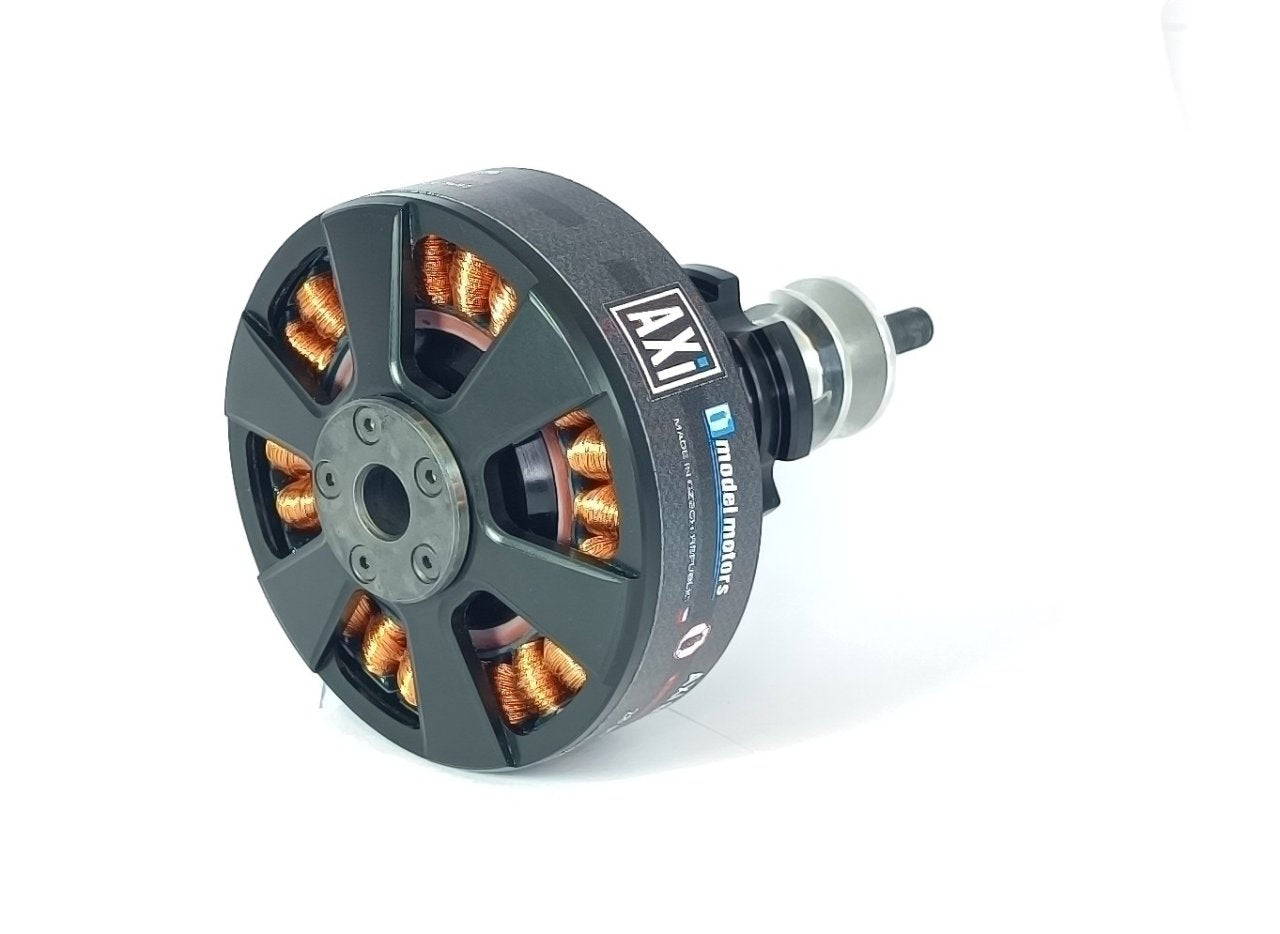

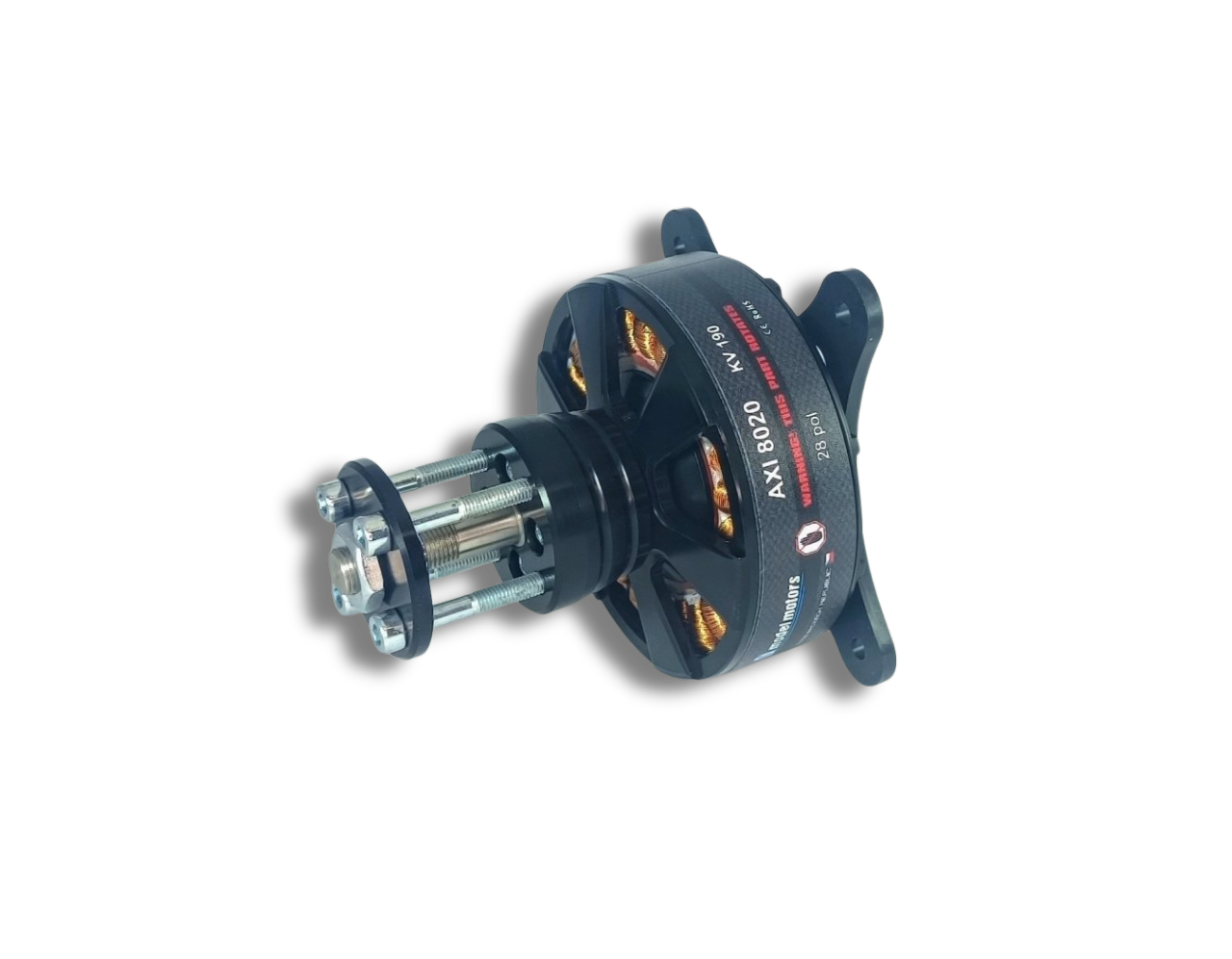

Motor 80.20
Product details
⚡ Strong Performance in a Robust Frame
The AXI 80.20 series is designed for medium-to-heavy propulsion applications, offering up to 5000 W of peak power. With an efficiency reaching 95 %, it delivers stable, effective thrust across a broad RPM range, making it a reliable choice for demanding builds.
🛠️ European Craftsmanship & Premium Materials
Manufactured in Europe with precision machining, the AXI 80.20 features hardened steel shafts, built-in prop adapters, and top-tier bearings. Its construction ensures mechanical integrity, vibration reduction, and consistent performance under operational stress.
🔧 Multiple KV Options & Versatile Integration
Available in several KV variants, the AXI 80.20 can be tailored to different voltage and RPM requirements. Its modular design supports easy integration into electric systems for advanced drones, vehicles, or propulsion units.
Basic parameters
Max. peak power (kW)
Max. voltage (V)

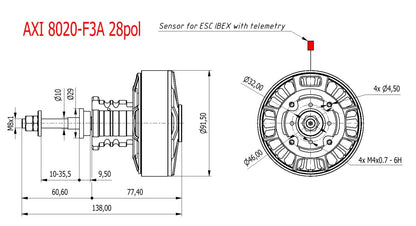

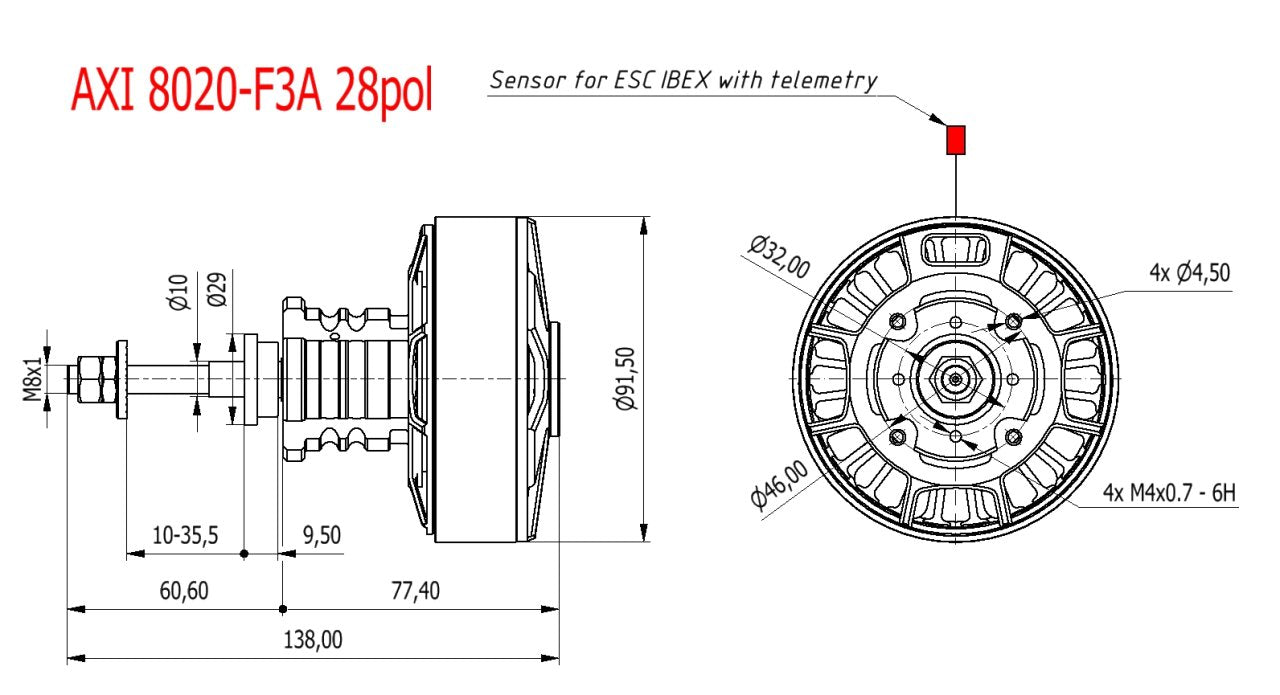

Mechanical parameters
Weight kg
Motor length mm
Motor diameter mm
Shaft diameter
Electrical parameters
Number of pole pairs
Internal resistance
Max efficiency
No load current
Max peak current
Sensors
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Please read our FAQs page to find out more.
What is the difference between continuous and peak power?
Continuous power is the level the motor can safely handle over long periods. Peak power is the short-term maximum during acceleration or climb. Exceeding continuous ratings can cause overheating.
What happens if the motor exceeds its maximum temperature?
The motor temperature should normally be monitored by the ESC through the built-in motor temperature sensor. If thermal protection is disabled or not supported, excessive heat can cause partial demagnetization of the magnets, leading to permanent loss of performance or complete motor failure.
How to prevent overheating?
Ensure proper cooling by maintaining sufficient airflow or liquid circulation around the motor. Overheating often indicates that the motor is overloaded or operating outside its efficiency range. Always match the motor with a suitable propeller, gearbox, or load to keep current within the rated limits. Monitor temperature through telemetry and avoid running at peak power for extended periods
What does KV mean?
KV indicates how many revolutions per minute (RPM) the motor produces per volt.
What maintenance does a BLDC motor require?
Brushless motors are mostly maintenance-free. Periodically clean the motor using dry compressed air to remove dust and debris. Avoid using liquids or solvents, and make sure no moisture enters the housing. Check bearings occasionally for smooth rotation.
