Product details

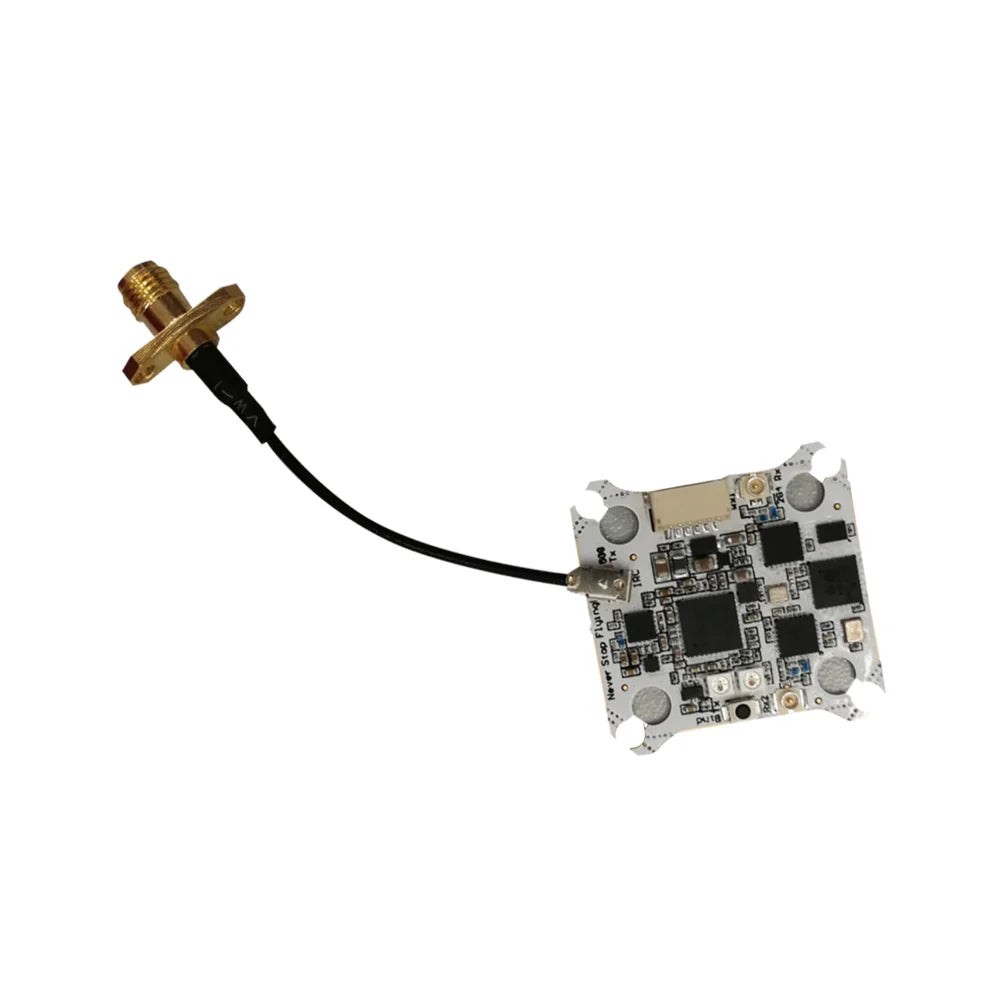

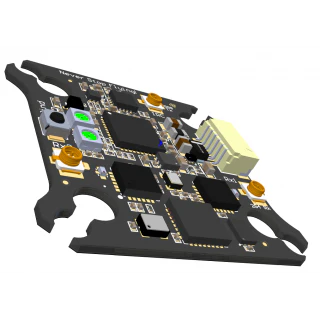

The Ghost Hybrid fuses two best-in-class FPV components onto a single board: a 5.8 GHz Tramp analog video transmitter and a 2.4 GHz Ghost receiver. One board, cleaner wiring, lower weight. Ideal for race and freestyle builds — especially the sub-250 g class — where every gram and every millimetre of stack space counts.
Features
- Integrated 5.8 GHz Tramp video transmitter, 25 mW – 600 mW
- Integrated 2.4 GHz Ghost receiver with two full channels (not just dual antenna)
- 500 Hz R/C link updates (hardware ready for 1 kHz)
- 2.4 GHz LoRa or FLRC control modes
- All 48 standard analog video channels
- 2.2 g without antennas — sub-250 g class ready
- 20 × 20 mm inner mounting, 25.5 × 25.5 mm outer mounting holes
- Thermally regulated and factory-calibrated
- Silent on power-up; immediate shutdown on failsafe
- Intelligent vTx control from the Ghost module OLED menu or OpenTX
- Locking U.FL / MHF connectors — light as standard U.FL, secure as SMA
- OTA firmware upgrades for both Rx and vTx
Specifications
| Receiver | 2.4 GHz Ghost (LoRa / FLRC) |
| Video transmitter | 5.8 GHz analog, 25 mW – 600 mW, 48 channels |
| R/C link rate | 500 Hz (1 kHz hardware ready) |
| Downlink RF power | +13 dBm |
| Sensitivity | −117 dBm (Long Range mode) |
| Serial formats | GHST, SBus, SBus-Fast (200k), SRXL-2 (400k), SBus Inverted |
| Firmware | OTA upgradable (Rx and vTx) |
| Power supply | 5 V, over-voltage protection |
| vTx control | Automatic, via Ghost module |
| Antenna connectors | U.FL with locking caps |
| Mounting | 20 × 20 mm inner / 25.5 × 25.5 mm outer |
| Weight | 2.2 g (without antennas) |
What's in the box
1× Ghost Hybrid · 2× qTee antennas · 1× U.FL to SMA adapter · wire harness · 4× gummies
