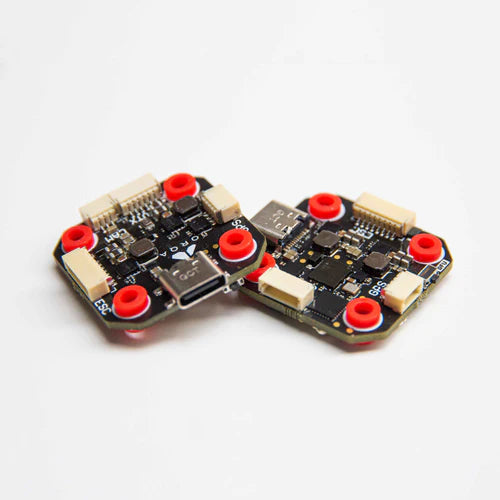

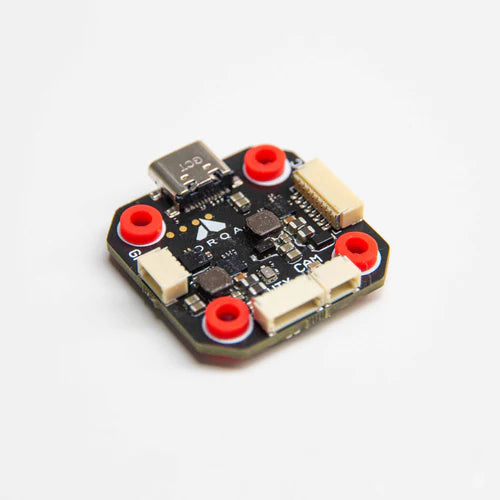

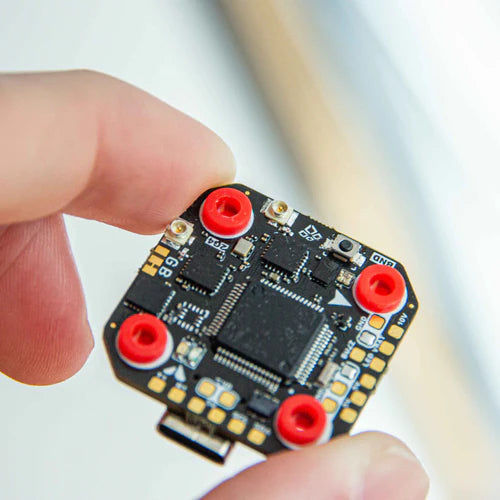

Product details
An F7-class flight controller designed and manufactured 100% in the EU, fully NDAA-compliant. Two independent Ghost receivers are integrated on the board, so no separate Rx module is required — plug in your digital HD vTx of choice (HDZero, DJI) and the build is complete. Built around a 20 × 20 form factor with JST-SH connectors throughout for fast, repeatable assembly.
Features
- STM32F722 processor with MPU6000 gyro
- Dual, independent Ghost receivers on-board (Ghost Duo)
- Digital vTx support via connector interface (HDZero, DJI and others)
- 20 × 20 mm mounting with softmount gummies included
- 2S–6S LiPo input
- 4 motor outputs
- Locking U.FL antenna connectors
- JST-SH connectors for ESC, vTx, camera, and GPS
- USB-C for configuration and firmware
- Onboard barometric altimeter
- Twin 2 A switching regulators (5 V and 10 V)
- 16 MB onboard serial flash memory
- Betaflight support
- Full NDAA compliance — 100% designed and manufactured in the EU
Specifications
| Processor | STM32F722 |
| Gyro | MPU6000 |
| Receivers | Dual integrated Ghost (Ghost Duo) |
| Antenna connectors | Locking U.FL |
| Motor outputs | 4 |
| Input voltage | 2S–6S LiPo |
| Digital vTx support | HDZero, DJI (connector interface) |
| Regulators | Twin 2 A switching — 5 V and 10 V |
| Altimeter | Onboard barometric |
| Flash memory | 16 MB serial flash |
| USB | USB-C |
| Connectors | JST-SH (ESC, vTx, camera, GPS) |
| Mounting | 20 × 20 mm, softmount gummies included |
| Firmware | Betaflight |
| Compliance | NDAA compliant, designed and manufactured in the EU |
What's in the box
1× Orqa FC2020-F722 HD · Softmount gummies · JST-SH wire harnesses
