Ghost JR Module
Product details

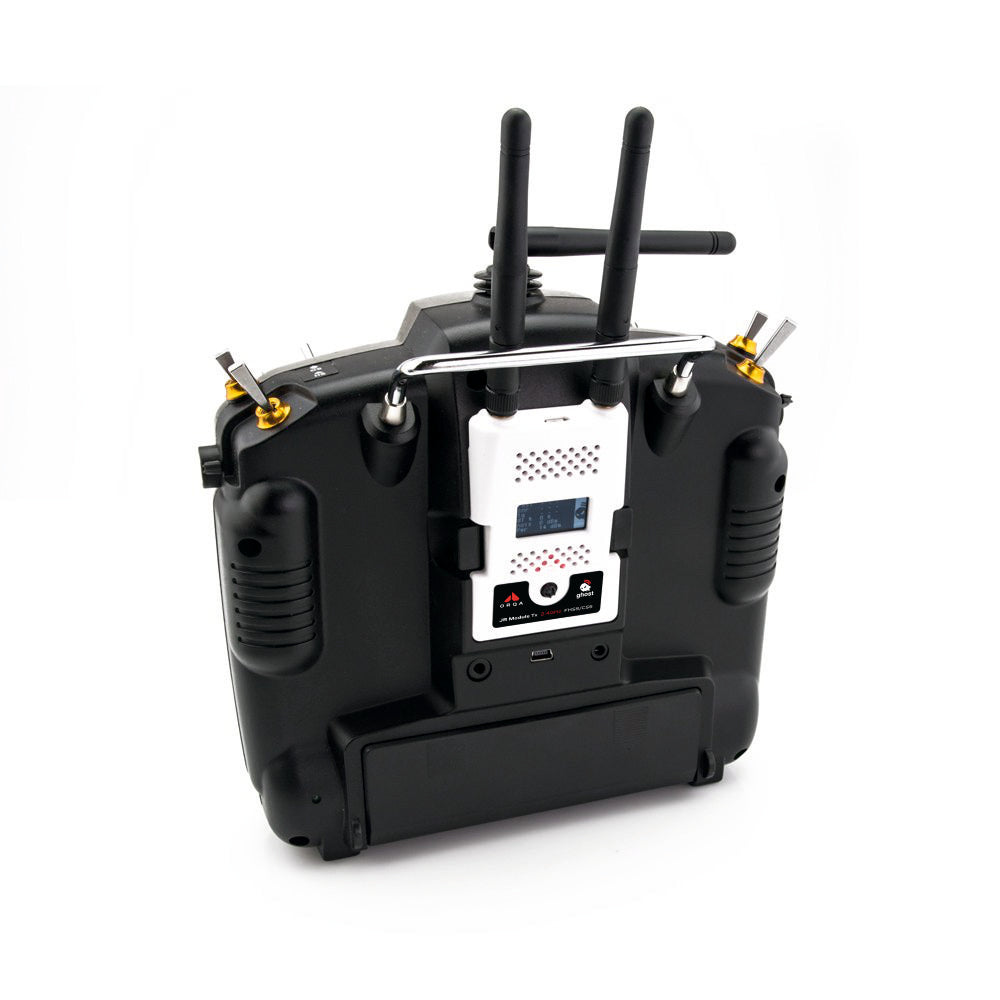

Slot the Ghost JR Module into any JR-bay radio — Taranis, RadioMaster, and others — and upgrade to a 2.4 GHz link built for both racing and long-range FPV. Four RF profiles cover everything from 222 Hz pure-race speeds to low-rate long-range. End-to-end latency sits around 4 ms with OpenTX. Designed in Switzerland by ImmersionRC.
Features
- 2.4 GHz worldwide ISM band — 76 MHz of bandwidth, clean in crowded race environments
- Four switchable RF profiles: Pure Race (222 Hz), Race (166 Hz), Normal (62 Hz), Long Range (15 Hz)
- ~4 ms end-to-end latency with OpenTX
- 16 µW – 350 mW uplink power (region-dependent)
- Twin 2.1 dBi dipole antennas with Tx-side diversity
- Chirp Spread Spectrum with Adaptive FHSS — robust against interference
- Bidirectional binding with protocol negotiation
- USB firmware upgrades; OTA updates for paired receivers
- Integrated OLED + joystick for on-module configuration (no Lua scripts needed)
- Supports SBus and GHST (auto-sense)
Specifications
| Frequency | 2.4 GHz ISM band |
| Modulation | Chirp Spread Spectrum + Adaptive FHSS |
| Output power | 16 µW – 350 mW (±0.5 dB) |
| Frame rates | 222.22 Hz / 166 Hz / 62 Hz / 15 Hz |
| Format | Standard JR module |
| Radio compatibility | FrSky Taranis, RadioMaster, and other JR-bay transmitters |
| Antennas | Twin 2.1 dBi dipoles, Tx-side diversity |
| Serial output | SBus, GHST (auto-sense) |
| Power supply | 6–20 V · ~250 mA at 7.4 V · 1.75 W at 400 mW |
| Firmware | USB upgradable; OTA to receivers |
What's in the box
1× Ghost JR Module · 2× Tx antennas
Receiver sold separately.
