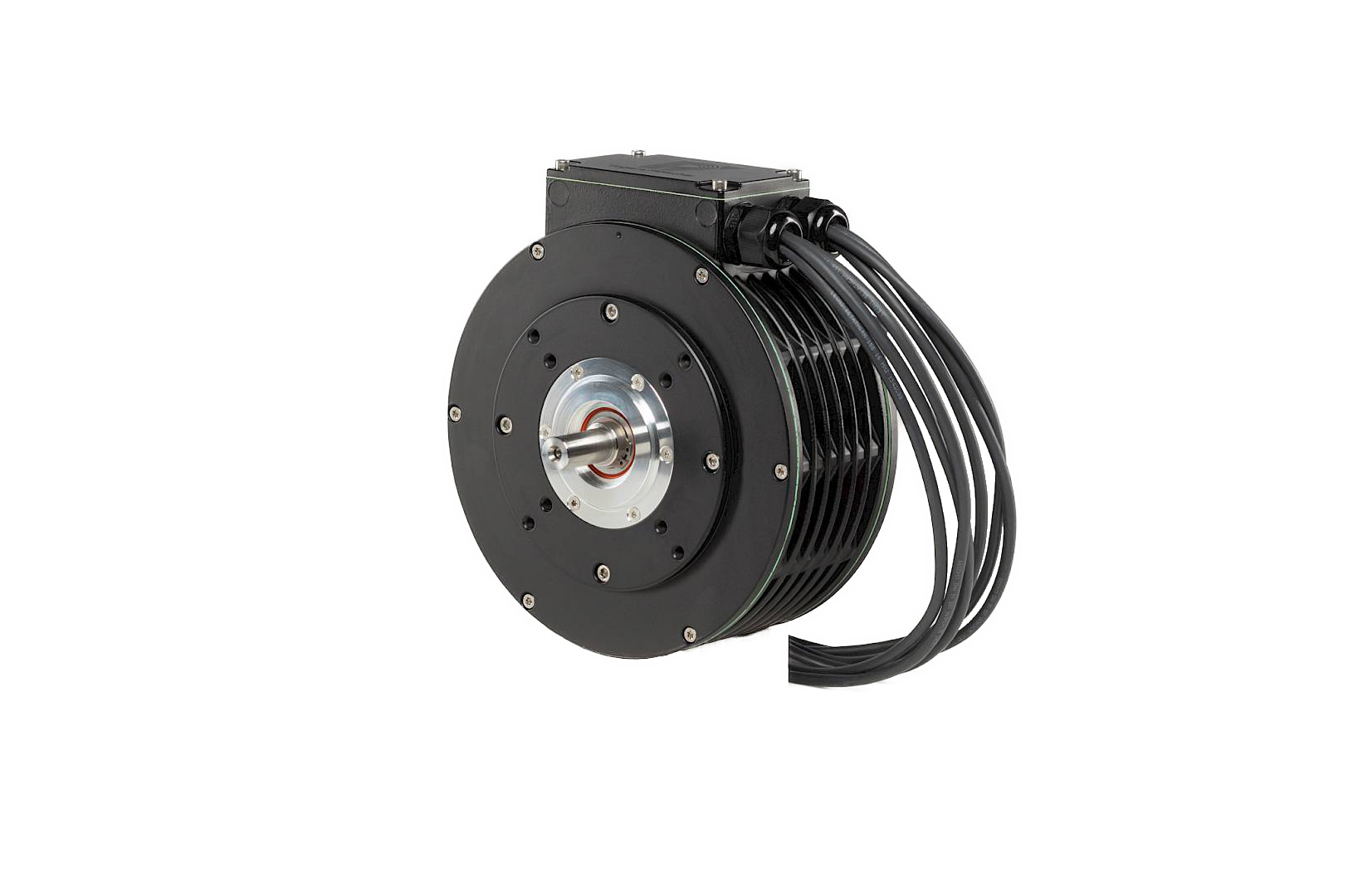

TDS 172FA
Product details
Serious Power in a Compact Package The TDS 172FA delivers between 5.2 and 7.0 kW of traction power — a significant performance jump over the smaller TDS series — while maintaining the compact axial flux form factor. Its two-stator design ensures high power density and low moment of inertia for rapid acceleration.
Purpose-Built for Demanding Applications The TDS 172FA is designed for use as a generator in hybrid systems, as a powerful drive for hydraulic oil pumps, and for wrenching machines in track construction. Optional gears allow precise adaptation to any given conditions.
Generator-Ready with Recuperation Support All TDS motors support regenerative operation. The TDS 172FA can act as a generator, enabling energy recuperation and contributing to higher system efficiency in hybrid and electric drivetrains.
Integrated Sensors & Optional Brake Every TDS 172FA comes with an integrated 8-bit encoder and temperature sensor as standard. An optional holding brake and compatible motor controller are available, allowing a complete plug-and-play traction chain.
In-House Stator Production Vogel & Plötscher manufactures the stator cores for their axial flux motors on their own winding and punching machines — ensuring full quality control and consistent performance.
Basic parameters
Max. continuous power (kW)
Max. voltage (V)
Max. Torque (Nm)
Mechanical parameters
Weight kg
Max rpm
Motor diameter mm
Electrical parameters
Sensors
Sensors & Control
Temperature sensor
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Please read our FAQs page to find out more.
What is the difference between continuous and peak power?
Continuous power is the level the motor can safely handle over long periods. Peak power is the short-term maximum during acceleration or climb. Exceeding continuous ratings can cause overheating.
What happens if the motor exceeds its maximum temperature?
The motor temperature should normally be monitored by the ESC through the built-in motor temperature sensor. If thermal protection is disabled or not supported, excessive heat can cause partial demagnetization of the magnets, leading to permanent loss of performance or complete motor failure.
How to prevent overheating?
Ensure proper cooling by maintaining sufficient airflow or liquid circulation around the motor. Overheating often indicates that the motor is overloaded or operating outside its efficiency range. Always match the motor with a suitable propeller, gearbox, or load to keep current within the rated limits. Monitor temperature through telemetry and avoid running at peak power for extended periods
What does KV mean?
KV indicates how many revolutions per minute (RPM) the motor produces per volt.
What maintenance does a BLDC motor require?
Brushless motors are mostly maintenance-free. Periodically clean the motor using dry compressed air to remove dust and debris. Avoid using liquids or solvents, and make sure no moisture enters the housing. Check bearings occasionally for smooth rotation.
